China CNC Machine Linear Guide 30mm Size SER-GD30NA SER-GD30WA with High Precision

Product introduction

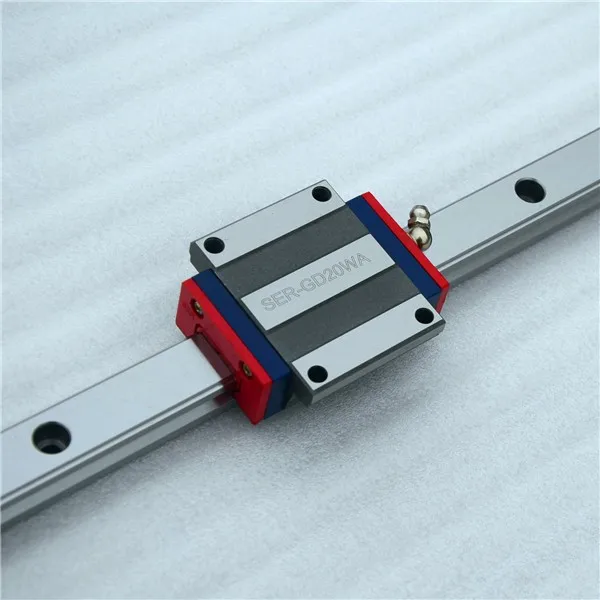

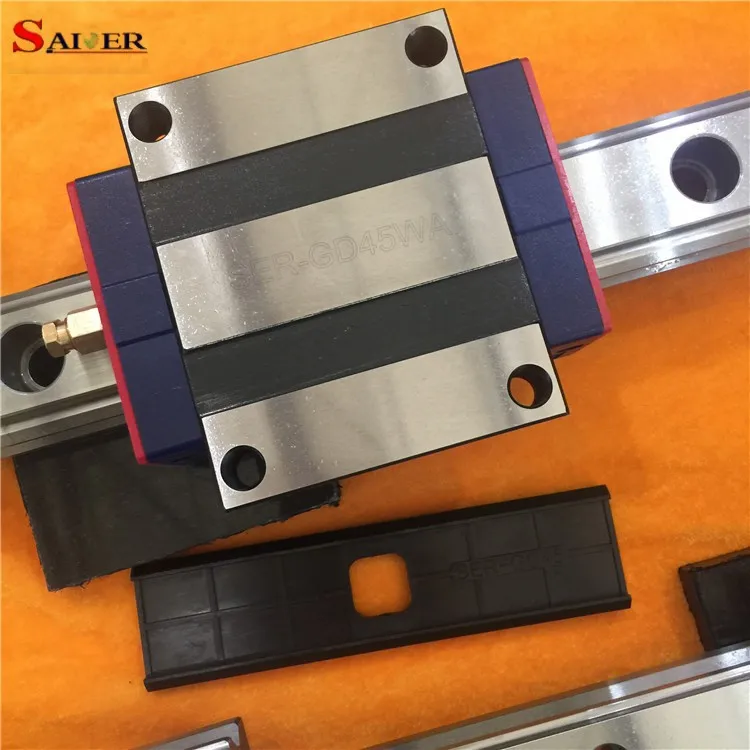

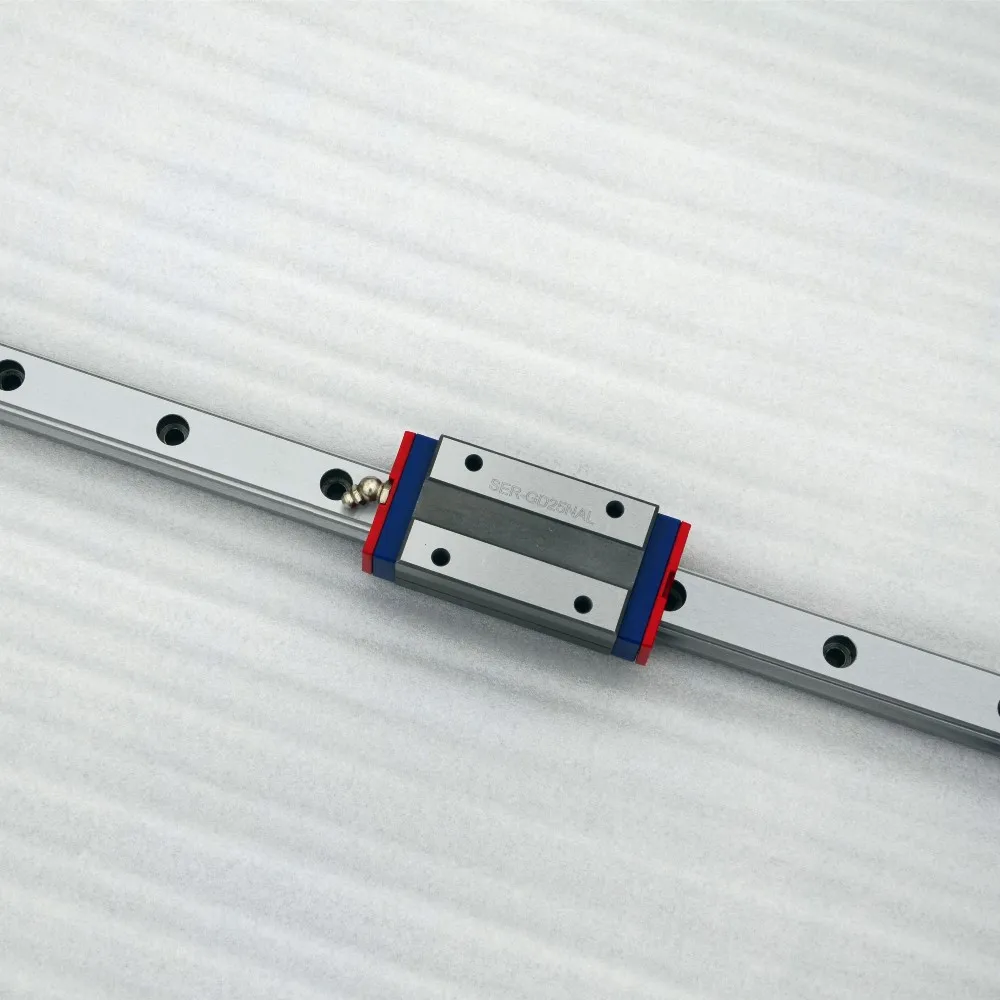

SAIER SER-GD30WA 30mm flange type linear guide

Model	SER-GD30WA/SER-GD30WB
Material	bearing steel ,  Hardness58-62HRC
Height of Guide pair	42mm
Width of guide pair	31mm
Width of block	90mm
Length of block	97mm
Width of rail	28mm
Large length of rail	4000mm
Pitch of hole	80mm
Block type	flange type
Rated Dynamic Load	2808KGS
Rated Static Load	4633KGS
Usage	cnc machinery, automatic lines, etc
Precision	C,    H,   P,   SP,    UP

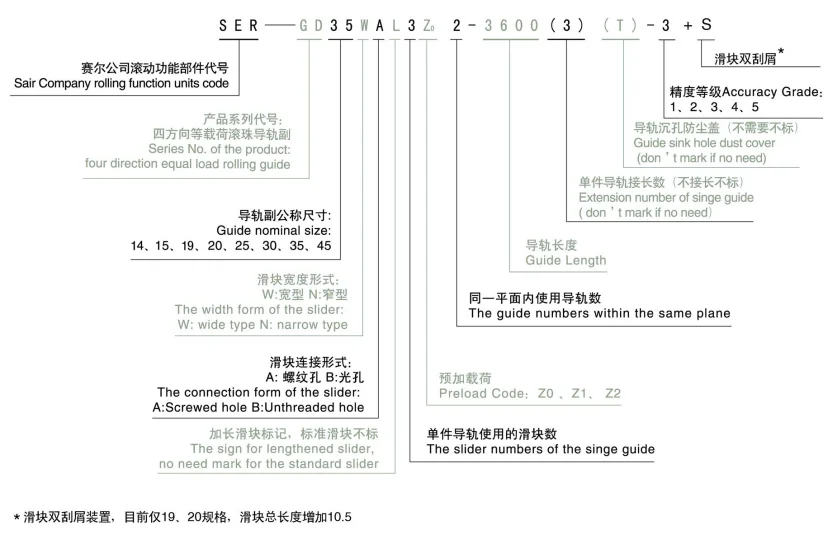

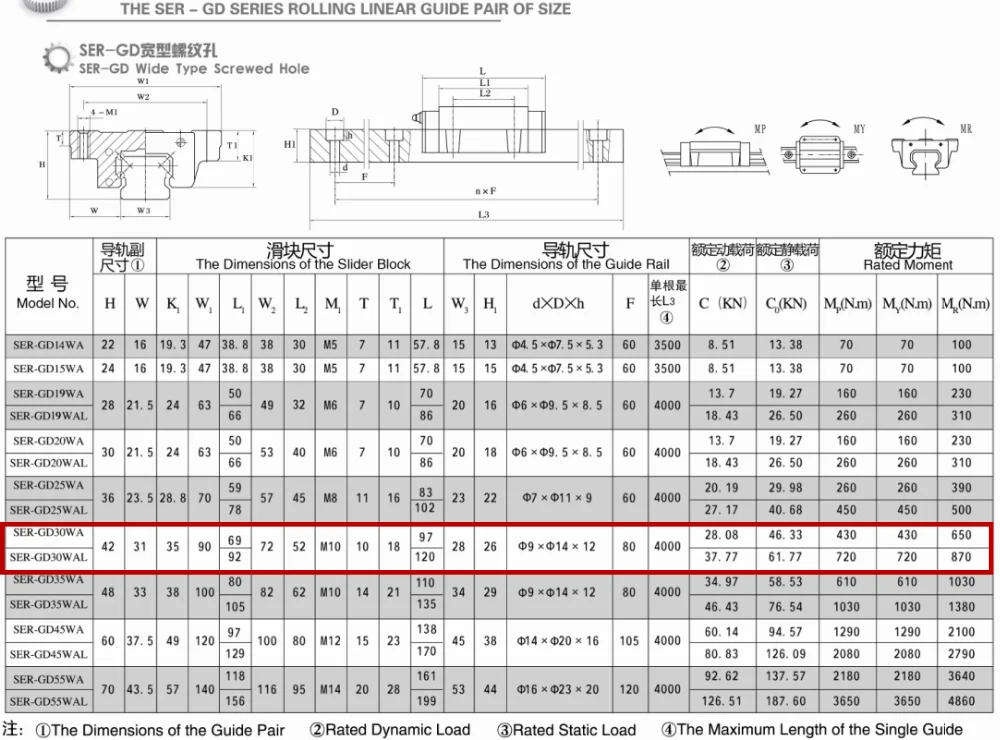

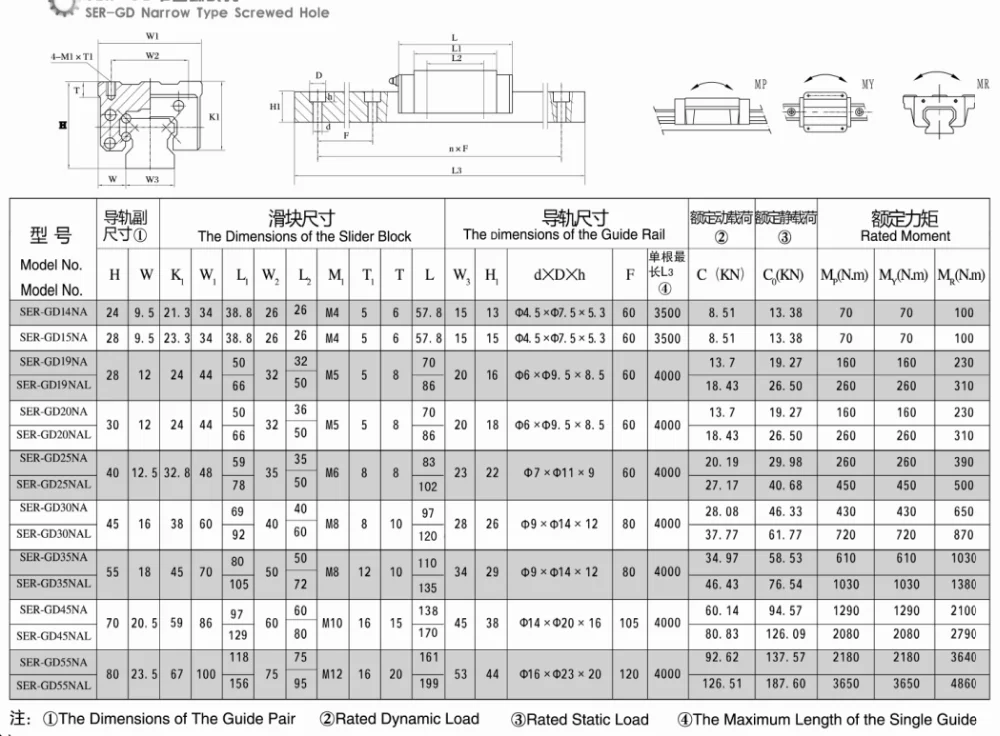

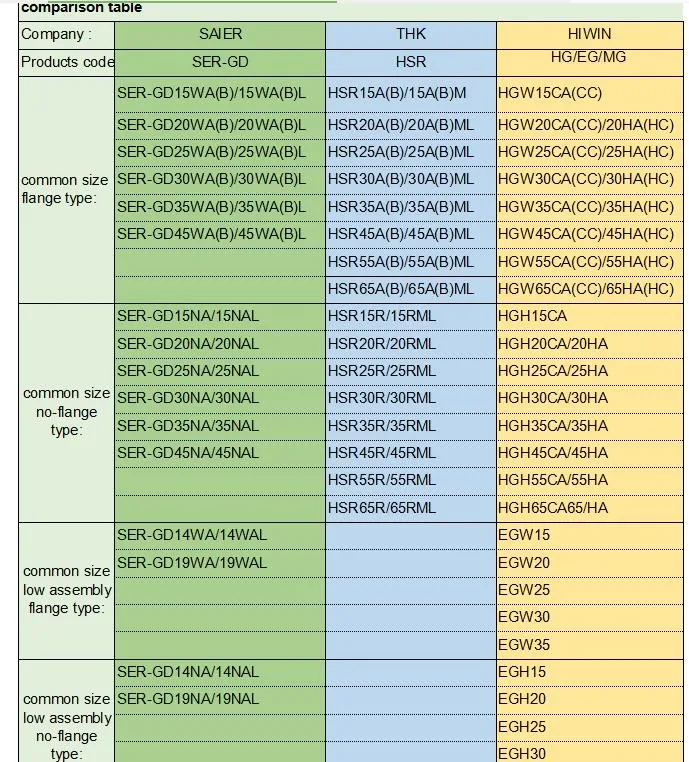

Parameters and models of SAIER linear guides rail and block in below

series linear guides

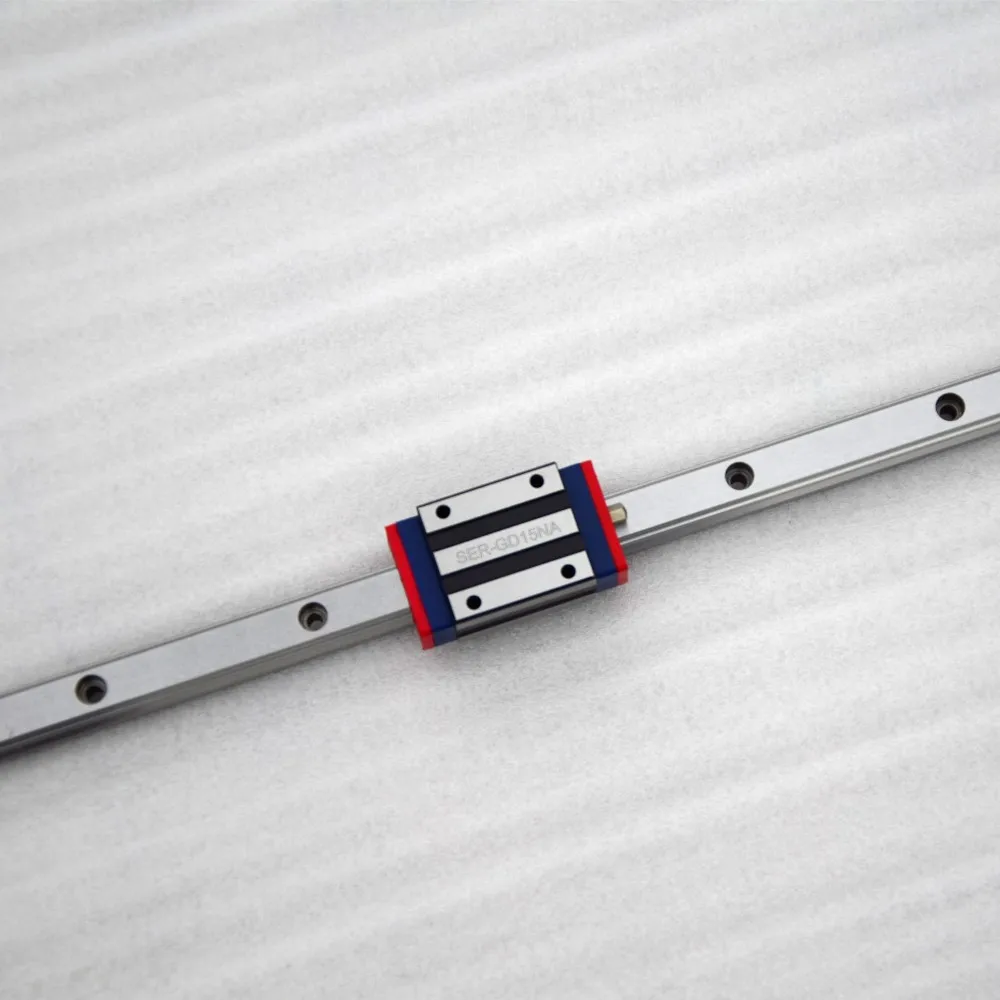

SER-GD15NA

SER-GD15WA

SER-GD20NA(L)

SER-GD20WA(L)

SER-GD25NA(L)

SER-GD25WA(L)

SER-GD30NA(L)

SER-GD30WA(L)

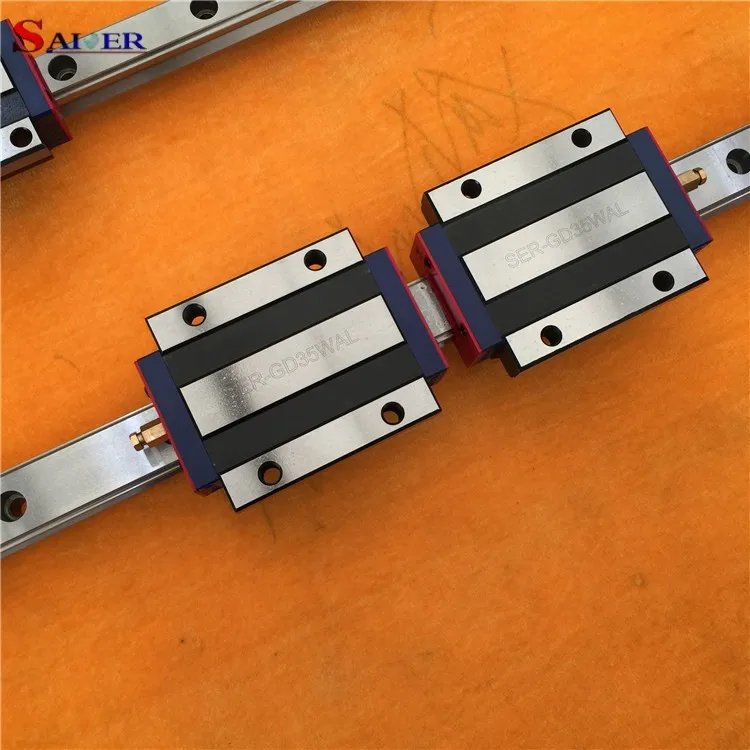

SER-GD35NA(L)

SER-GD35WA(L)

SER-GD45NA(L)

SER-GD45WA(L)

Other products

Miniature linear guides

MGN5

MGN7/MGW7

MGN9/MGW9

MGN12/MGW12

MGN15/MGW15

Cross linear guides

SER-GC25
SER-GC30
SER-GC35

BALL SCREW

Ball screw rod

BK/BF

Ball nut

Ball nut hosuing

Coupling

Packing & Delivery

Packaging Details:   1)Sample order packing by paper carton for saving freight charge;

                                    2)bulk order sent by sea will be packed by film and wooden carton.

                                    3) as customer's requirements.
Delivery Detail:      within 5-15 days against payment

Production process

block --- production process

cutting-rough grinding-maching-topping-quenching-sand blasting process- fine grinding-assemble-fine milling-marking-packing and transportation

Linear guide rail --- production process

Quenching-drill hole- straighten-fine grinding-assemble-packing and transportation

Our Certifications


Customers

FAQ

1. Q: How about the quality of your product?
A: 100% inspection during production.
Our products are certified to ISO9001-2008 international quality standards.

2. Q: What's the delivery time?
A: For custom order, within 2000 meters,
Production time is 15days after confirmed every details.

3. Q: What's your packing?
A: Our Normal packing is bulking in PE bag, and then into plywood Cartons.
We also can pack products according to your requirement.

4. Q: What about the warranty?
A: We are very confident in our products,
and we pack them very well to make sure the goods in well protection.

5.Q: Could you send me your catalogue and price list?
A: As we have more than hundreds of products,
it is really too hard to send all of catalogue and price list for you.
Please inform us the style you interested, we can offer the pricelist for your reference.

6.Q:There are a lot of companies which export bearings, why do you choose us?
A: As we are a genuine linear guide supplier since 2011.and we are really factory, you need not pay the profit for middlemen. so we can offer you the lowest and competitive price .
